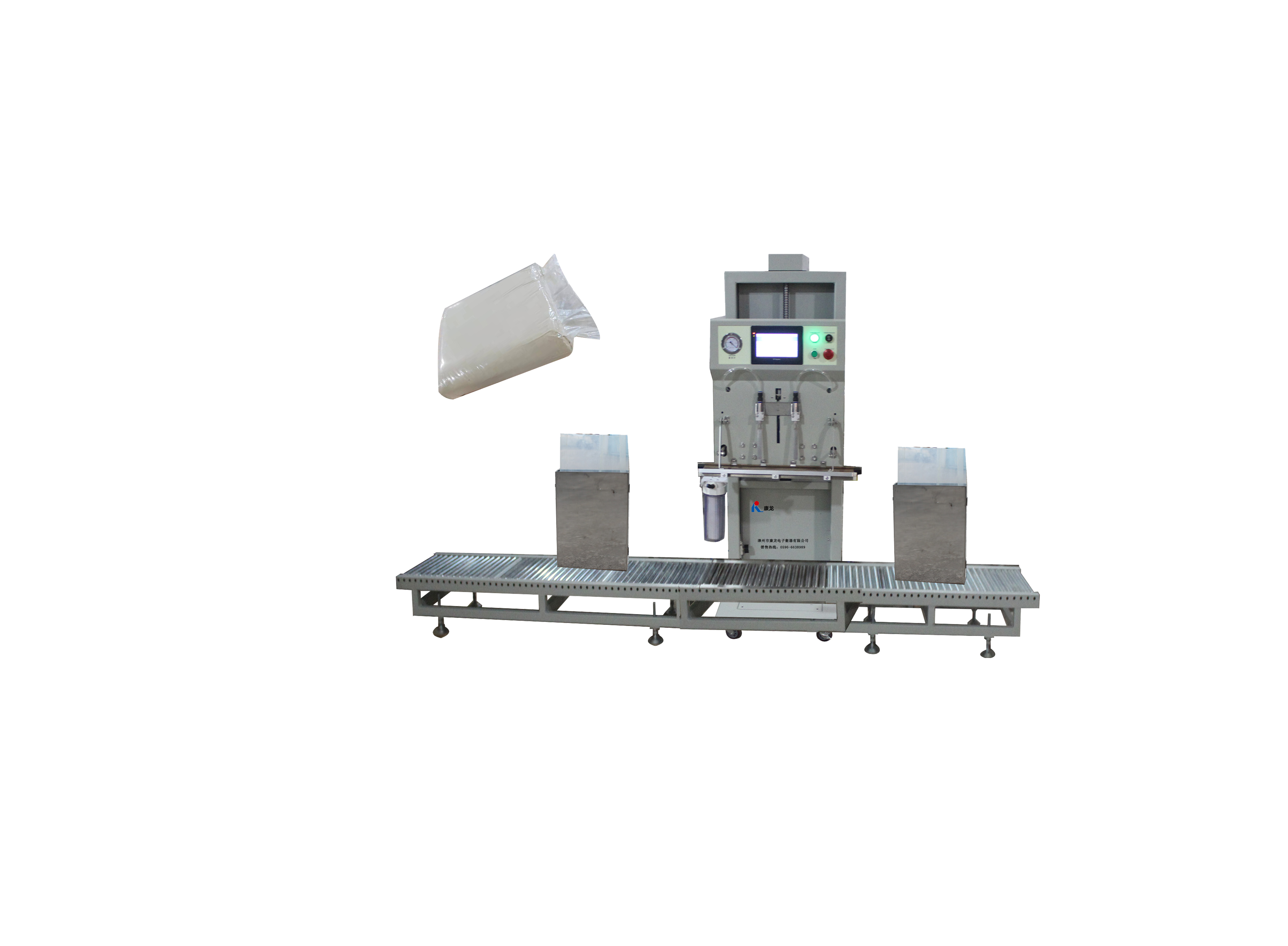

产品名称:粉料真空机 |
产品编号:KL-600LC |
适用范围: |
浏览次数:13326 |
|
|
|
- 技术参数
- 操作视频
- 用户现场
- 设备安装尺寸
- 可选配置
包装能力 |
(3-6)包/分钟 |
最大封口尺寸 |
W600 |
电源电压 |
220/110V 50Hz-60Hz |
极限真空度 |
-0.1MPa |
外接气源压力 |
5-8kg |
总功率 |
1.5KW |
外形尺寸 |
L670*W820*H1680 |
重量 |
100kg |
本真空机可电动升降抽真空,采用触摸屏操作界面, 智能化装置,操作简便。 The machine can adjust up and down for vacuum, adopt touch screen operation interface, Intelligent, easy to operate.
工作模式working mode:
1、真空模式:真空+封口(标配); Vaccum model: Vacuum+seal(standard) (1)可根据袋子的高度设定真空机头的升降行程; Set vacuum device movements itinerary according to the height of the bag (2)设定工作程序,机器进入待机状态,将包装袋塞向气嘴, 调整包装两端与封口线对齐并将袋口拉平。 Set procedures, the machine into standby mode, bags stuffed to gas mouth,adjust the packing at both ends and the sealing line to same level (3)可自由调整真空机头或吸气管高度,控制抽吸气管与 物料的间距,保证抽真空效果。 Adjust the height of vacuum device freely, finish the good vacuum effect (4)踩脚踏开关,控制夹袋后, 自动进行: 抽真空→热封口→冷却→完成包装 stepping on foot switch, finished clip bag, automatically:Vacuum→ heat sealing → cooling →finished vacuum packaging
2、设警系统:Warning system 该机器采用了自动检测系统,在开、关机和使用过程 中错误操作或出现故障,系统将会自动报警,直到故障排 除为止。 This machine adopts the automatic test system, On and Off and Errors in operation or malfunction, the system will automatically alarm, until solve the problem |
|
|
|
|
